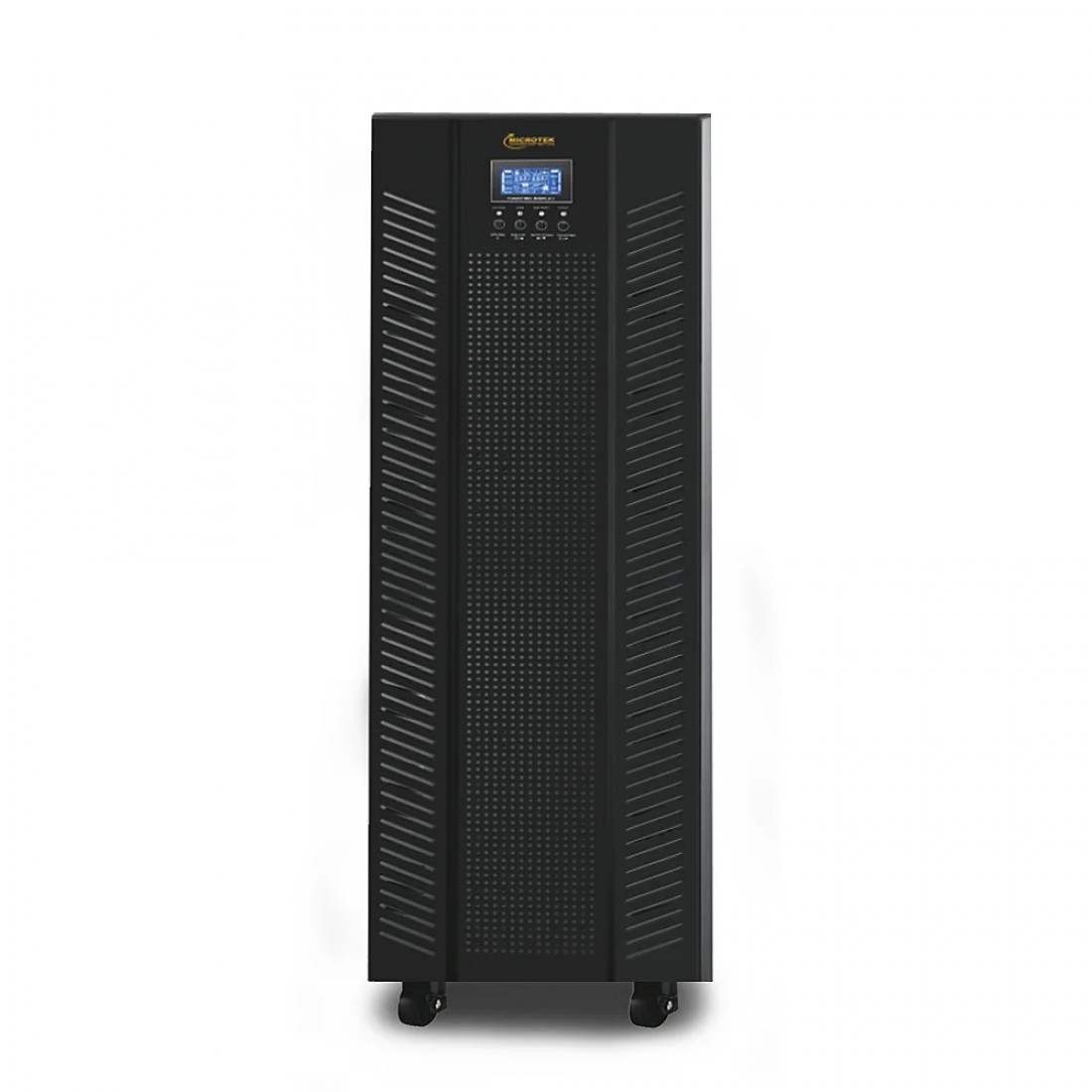

Microtek Online UPS 10KVA Max+ Series 1PH:1PH 192V

Microtek offers Wide Range of Online UPS from 1KVA to 30KVA based on World’s Latest Technology to meet the harsh Environmental and worst Power Conditions for Applications from Small Office requirement to Space Critical Missions with wide variety of Backup Range from 5 minutes to 10 hours to meet the needs of every individual.

KEY FEATURE

• Unity Power Factor Output With 20-Battery Option.
• High Efficiency up to 94% & True Double-Conversion.
• DSP technology guarantees High Performance.
• Wide Input Voltage Range (110-300 VAC) & Light Weight UPS
• Active Input Power Factor Correction 0.99
• 50Hz/60Hz Frequency Converter Mode & Emergency Power off Function (EPO).
• ECO mode for Energy Saving & Adjustable Battery Numbers
• SNMP/USB/RS-232 Communications & Maintenance Bypass.
• Static Bypass Available & Optional N+X Parallel Redundancy.

Generator Compatible & Inbuilt Surge Protection with OVCD Available.

Warranty :- 24 months

GENERAL INFORMATION

MODEL NAME / NUMBER – MAX+ 10 KVA

CAPACITY – 10000VA/8000W

DC VOLTAGE SYSTEM

Default= 192DC

Adjustable= 216VDC & 240 VDC

PHASE – 1 PHASE IN ~ 1 PHASE OUT

INPUT

NOMINAL VOLTAGE – 208/220/230/240 VAC

INPUT VOLTAGE RANGE

• 110~300VAC + 3% at 50% Load
• 176~300VAC + 3% at 100% Load

FREQUENCY RANGE

 46~54 Hz

TOTAL HARMONIC DISTORTION THD(!)

<4% @ 100% Load

<6% @ 50% Load

POWER FACTOR

 > 0.99 @ 100% Load

OUTPUT

OUTPUT POWER FACTOR

Default = 0.8, Optional = 0.9 with Battery, 1 With 20-Battery

NOMINAL VOLTAGE – 280*/220/230/240 VAC

AC VOLTAGE REGULATION –  + 1% (Battery Mode)

CURRENT CREST RATIO – 3:1

FREQUENCY RANGE

 46~54Hz (Synchronized Range)

 50Hz + 0.1 Hz (Battery Mode)

HARMONIC DISTORTION

  • <2% THD (Linear Load)

  • 4% THD (N on-Linear Load)

OVERLOAD CAPABILITY

 AC MODE : 100%-110% : 10Min ; 110%-130%:1Min ; >130% : 1Sec.

 BATTERY MODE : 100%-110% : 30Sec ; 110%-130% : 10Sec ; >130%: 1Sec

EFFICIENCY

EFFICIENCY (AC MODE / BATTERY MODE)

 AC MODE: 94% , BATTERY MODE: 91%
